BLE Serial nRF


nRF app
This a serial monitor that can send strings in UTF-8 between an IOS device and an device equipped with Nordic nRF BLE Bluetooth modules that are used with the Espressif ESP32 and Arduino Nano ESP32, MKR1010, Nano BLE 33 et cetera.
An BLE explanation and Arduino example program here

Several Arduino source codes are here or on Github/ednieuw that utilises this app.

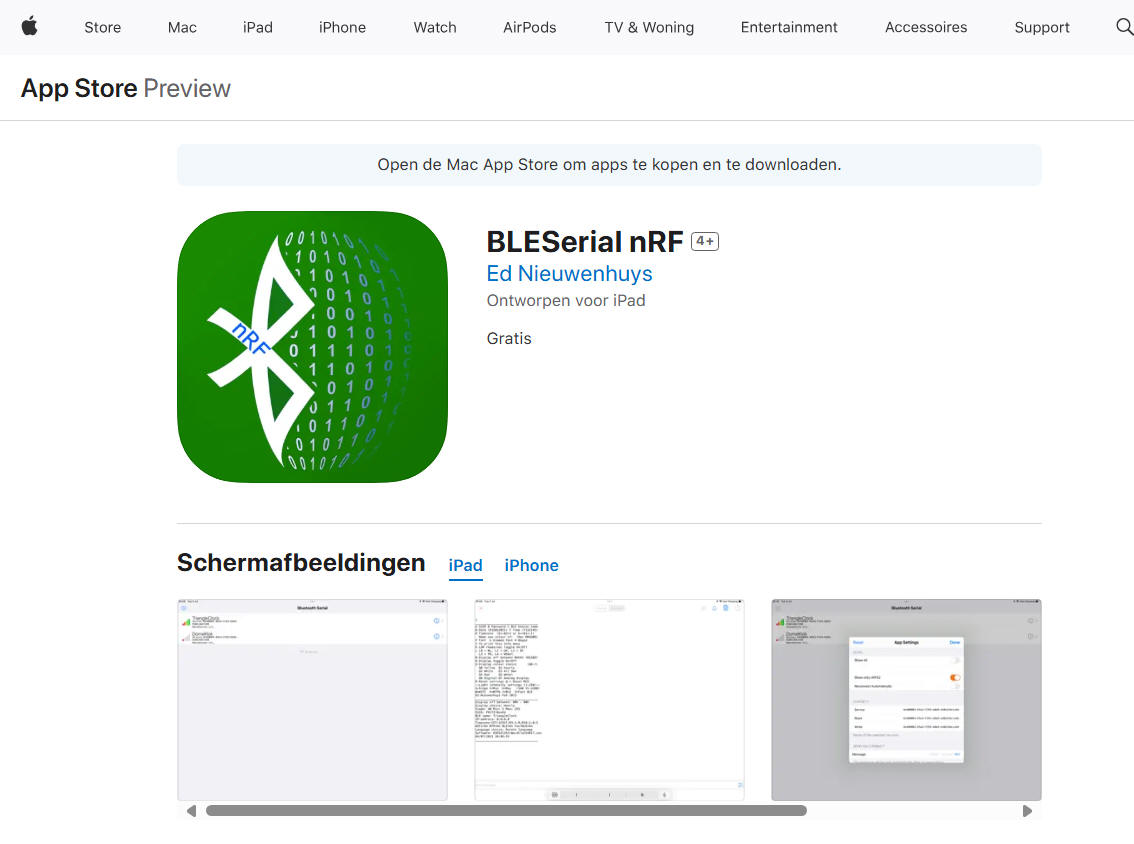

This free app can be found here in the Apple app store : BLESerial nRF in de App Store.
This app is identical with the the BLE serial Pro app but the functions TAB will not work.

It's working can be found on this page: BLE serial Pro app
Behind the function TAB buttons can be created that will send a string of commands

Pro app in Apple app store: BLE Serial Pro in de App Store

The app workings
When the app is started a list of available BLE UART stations is listed.
With the setting wheel left top several options can be selected.
 When a BLE station is selected one can send command in the bottom line of the windows
In this window left from the bin several display options can be selected.

 nRF start  nRF Scan UART Display options
Station selection

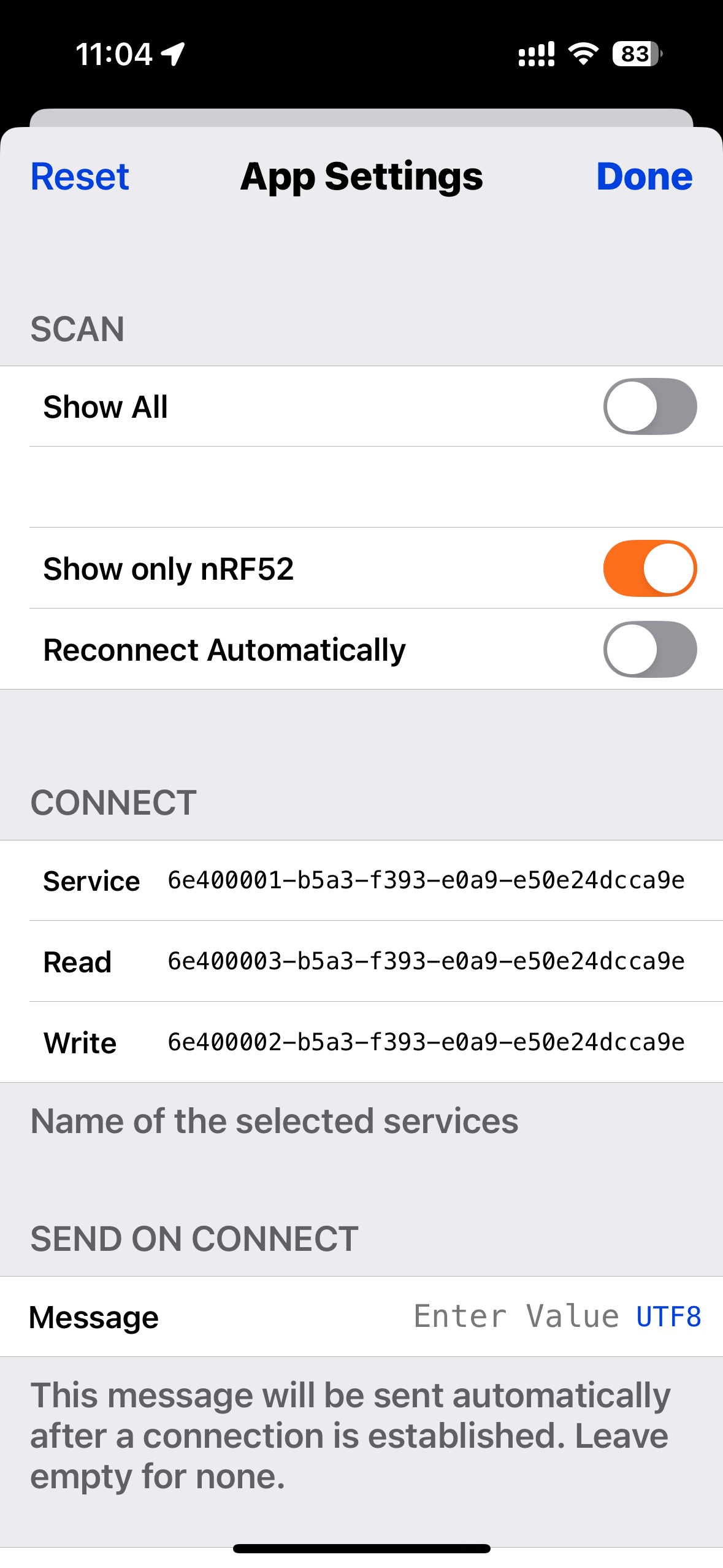

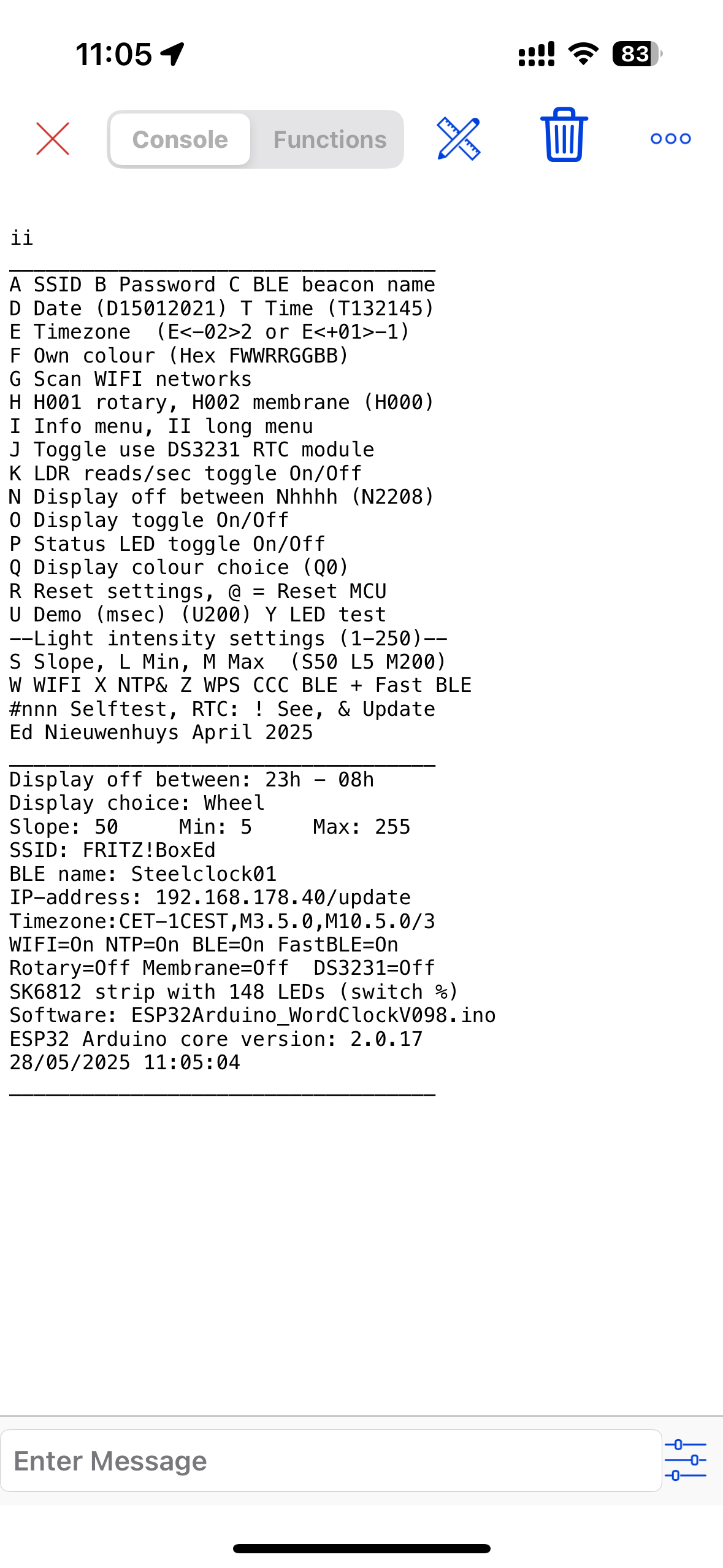

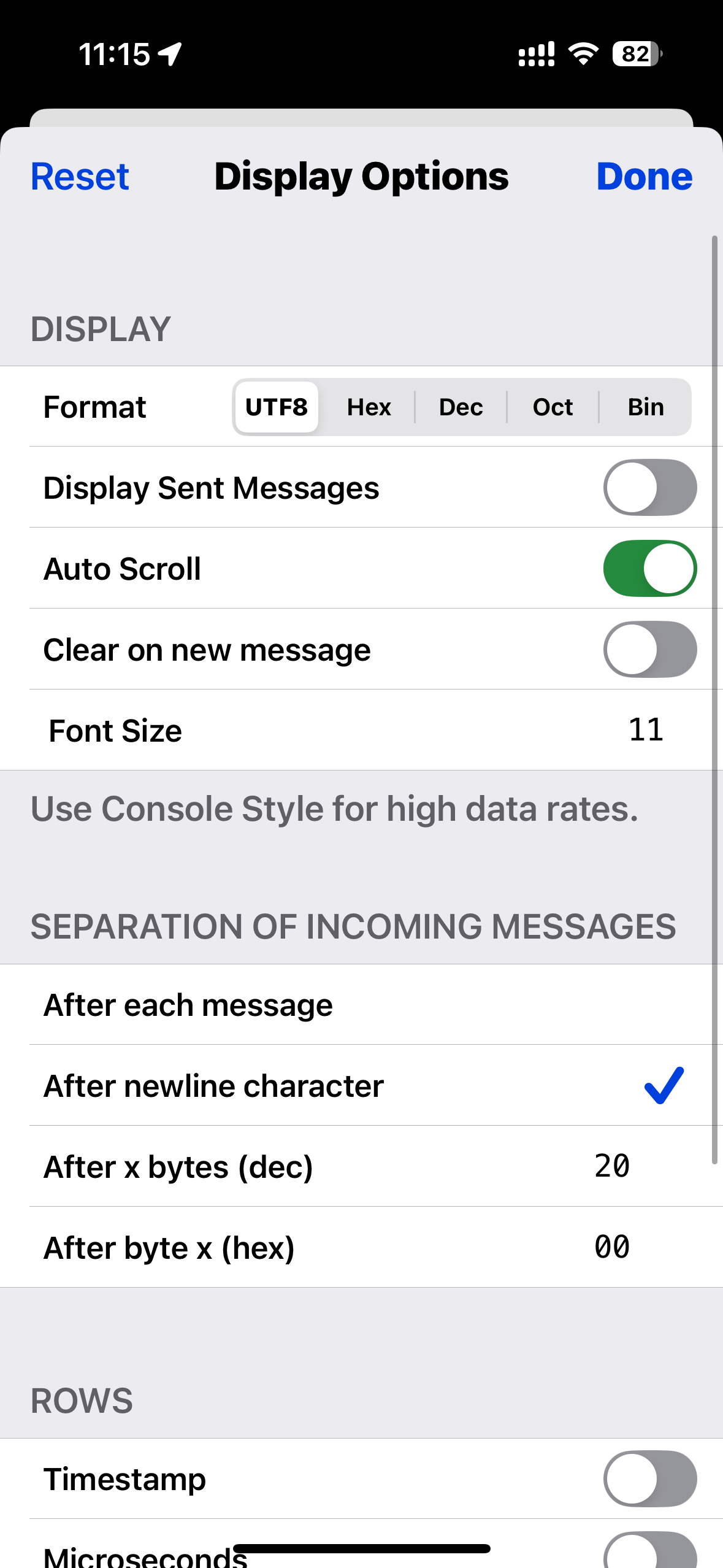

App settings  UART Console  Display options

Movies
Demo BLEnRF102.mp4     ScreenRecording.mp4
